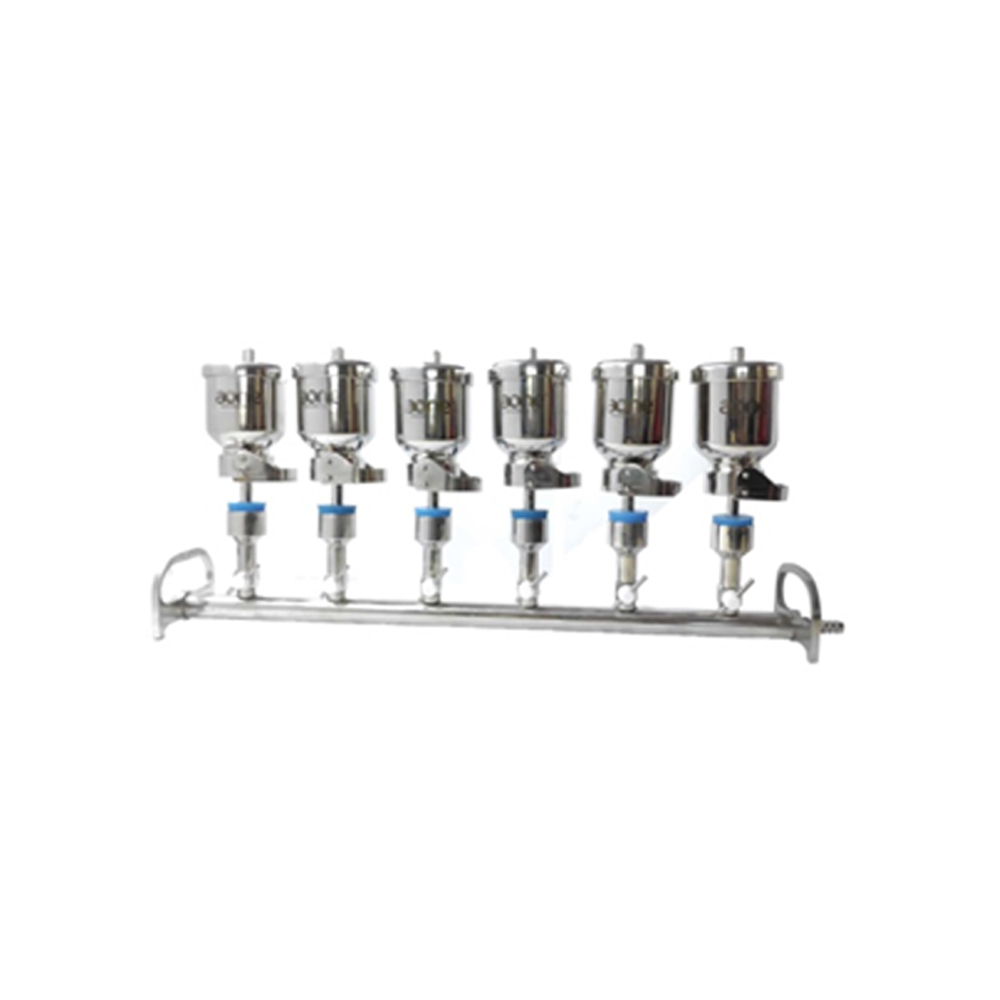

Vacuum Filter Manifold 6 stage

Product Description:

Vacuum Filtration Manifold is used primarily in microbiological, Sterility and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. They are particular designed and produced for several samples filtrate at the same time. Because each filter holder has individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together.

• Two- and three-way valves feature PTFE stopcocks for smooth control
• Valves provide independent control at each branch for vacuum and venting
• Connect three or six filter holders to one Vacuum source

Specification :

• Material Of Manifold:Stainless Steel
• No of Branches:6With PTFE Valve
• Membrane Diameter:47mm Effective Filtration Area: 13.5 Cm2.
• Supported Funnels:Polypropylene, SS-316, Borosilicate Glass, and PSU.
• Supported Volume Of Funnel:300ml, 500ml, and 1000ml.

Optional:Diaphragm Vacuum Pump, Sterile Membrane, Flame Sterilization Tool, Tweezer, Flask Fittings
